Construction Equipment Telematics
Fuel monitoring, theft prevention and engine data for excavators, bulldozers and road-building machinery
Fuel consumption monitoring
Fuel theft prevention
Engine operating time tracking
GPS position tracking
Axle load monitoring
CO₂ emissions monitoring
The challenge
Construction and road-building machinery burns significant amounts of diesel — often far from base, with multiple operators, around the clock. Fuel theft on unattended construction sites is one of the most common and hardest-to-detect losses in fleet operations. At the same time, without data on actual consumption, it’s impossible to set accurate fuel norms or identify which machines are overconsuming.
Wagencontrol provides hardware solutions for GPS tracking platforms that give fleet managers full visibility over construction equipment: how much fuel each machine consumes, when the tank was drained or refueled, how long the engine ran at idle versus under load, and where the machine was at any given moment.
Monitored parameters
- Instantaneous fuel flow rate in engine lines
- Total fuel consumption per machine / shift / period
- Fuel level in tank — current volume
- Refueling and draining events with volume and time
- Fuel temperature
- Engine operating hours — total and by mode
- Time in Idle / Optimal / Overload modes
- Coolant temperature, oil pressure (via CAN)
- CO₂ emission volume — total and hourly
- Position and operating time of working attachments
- Fuel consumption by individual equipment components
- Vibration and mechanical loads
- Electrical system parameters
- Engine start / stop, power on / off
- Refueling or draining detected
- Axle overload
- Geofence entry / exit
- Tampering alerts
What the system gives you
Up to 50% reduction in fuel losses
Precise measurement of actual consumption vs reported consumption reveals over-consumption and theft immediately. Fuel norm correction based on real data — not estimates — reduces the gap between what’s spent and what’s recorded.
Full engine visibility without wiring changes
CANCrocodile reads J1939 data from the CAN bus contactlessly, without cutting any wires or affecting warranty. Engine hours, load modes, diagnostic codes — all available in your GPS platform within minutes of installation.
Hardware and applications
Hardware for construction equipment
The system is built around Wagencontrol sensors that integrate with any GPS tracking platform via standard interfaces (CAN J1939/71, J1708, RS-485, Bluetooth).
Core hardware for construction equipment:
- DUT-E — fuel level sensor, permanent tank control
- DFM — inline fuel flow meter, 0.5–180,000 L/h
- DUT-E GSM — combined fuel level + GPS/GSM in one device, ideal for remote sites
- CANCrocodile — contactless CAN bus and J1708 reader
- MasterCAN — SAE J1939/FMS signal converter
- GNOM — axle load sensor for dump trucks and heavy loaders
Applicable machinery types
- Excavators
- Bulldozers
- Graders
- Front-end loaders
- Mini loaders
- Dump trucks
- Truck cranes
- Telescopic handlers
- Aerial work platforms
- Asphalt pavers
- Road rollers
- Cold planers
- Concrete mixers
- Concrete pumps
- Drilling rigs
- Compressors
- Diesel generators on site
Case studies
Road building machinery, Philippines
25 units of road-building machinery equipped with DUT-E GSM sensors. Result: 20% reduction in fuel costs. Full return on investment in under 3 weeks.

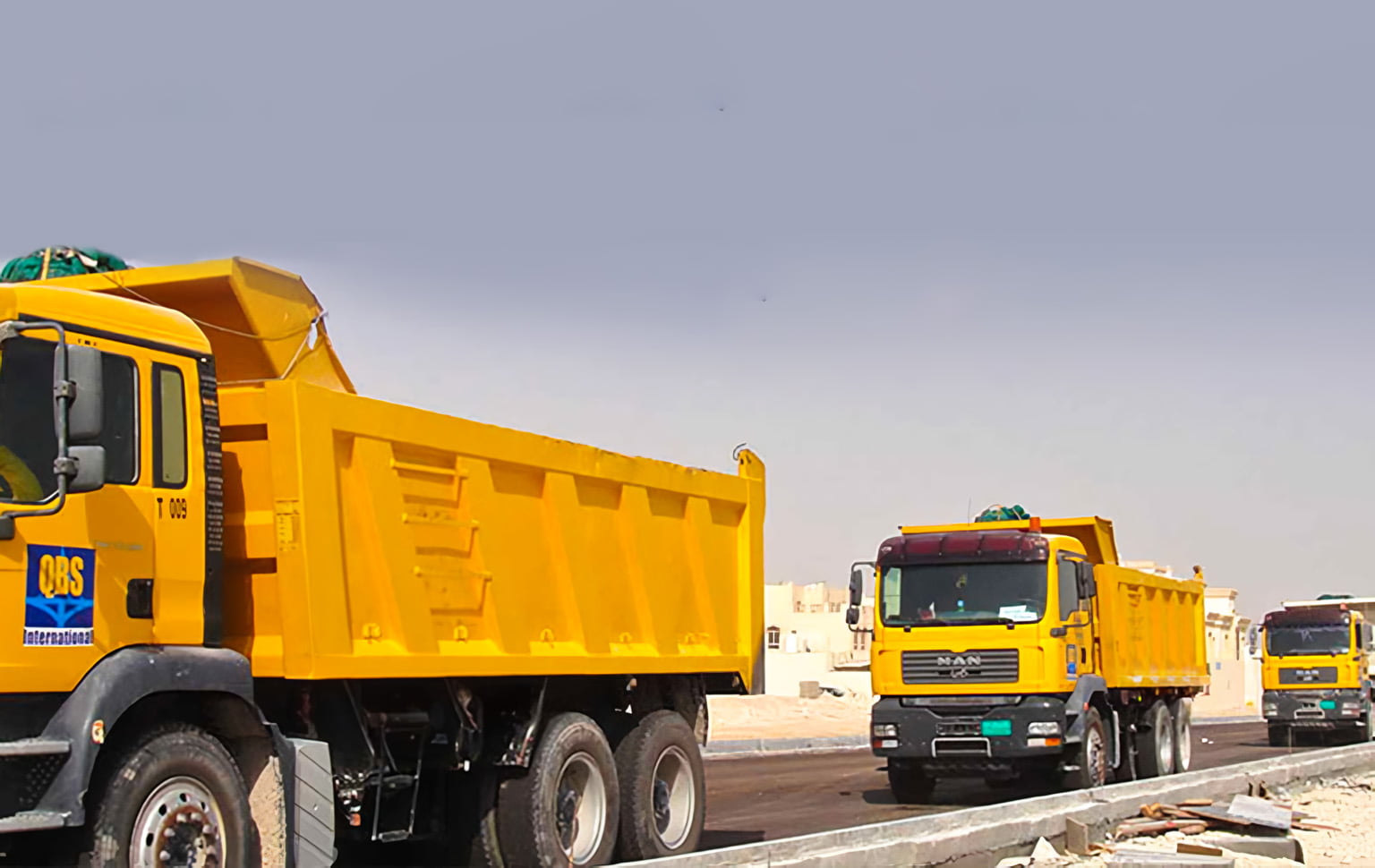

Construction fleet, Qatar
DUT-E GSM 2-in-1 device combining fuel monitoring and GPS tracking installed across a construction machinery fleet. Single device — two data streams: fuel level and vehicle position, all in one GPS platform.
