HIGH CAPACITY FUEL FLOW METERS
In-line fuel flow meters for exact fuel consumption measurement on big engines
Suitable for industrial application
Accurate fuel flow measurement for flows up to 4000 L/h
Prevent fuel theft and optimize consumption
Detect fuel theft and optimize fuel consumption – within 97% of flow range max. inaccuracy is 0.5%
Tuned for Maritime applications
Materials and standards to meet tough marine conditions
Detection of actual working hours

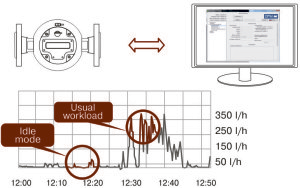

Automatic detection of idling, normal work time and overload modes of engine operation
Applications

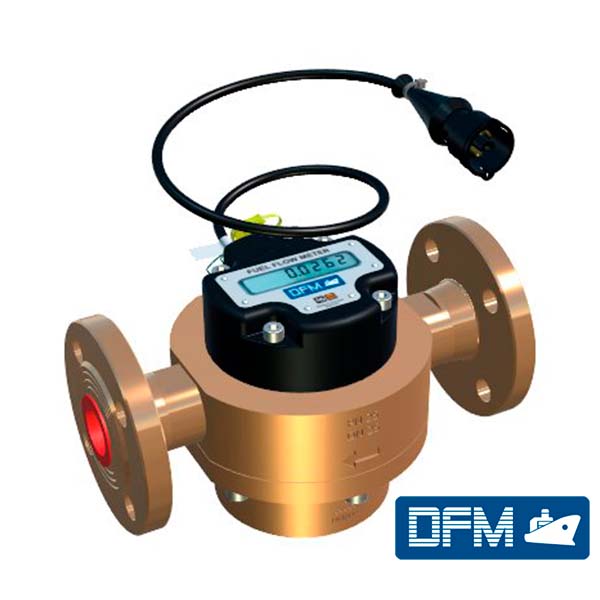

DFM Marine

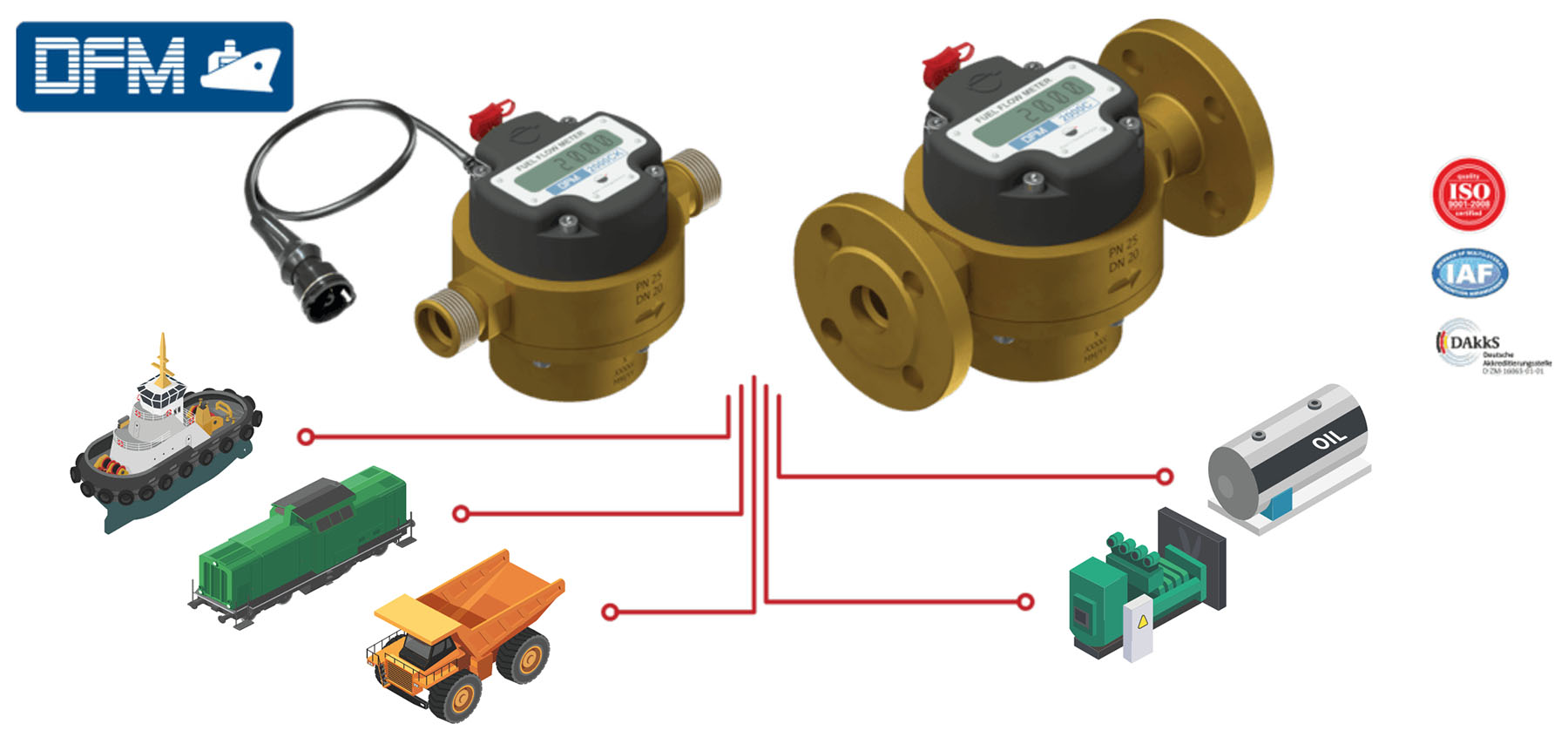

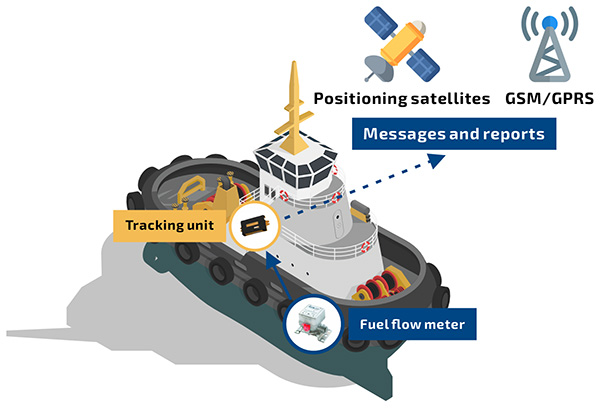

DFM Marine is a precise tool for fuel consumption measurement of maritime transport, locomotives, high-power diesel generators, mining and quarrying machinery, boilers/burners. DFM Marine fuel flow meters can be used within Telematics systems as well as stand-alone autonomous solution. DFM Marine is installed in fuel system of engines/boiler/burner, measures instant fuel consumption per hour and sends outputs signal to vehicle tracking device.
Communication protocols
Implemented J1939 protocol allows DFM Marine CAN to be used within S6 Telematics interface together with DUT-E CAN fuel level sensor and other equipment. Telematics device can obtain data via just 1 CAN-port – from up to 8 units DFM Marine CAN and up to 8 units of DUT-E CAN. This option is useful when monitoring fuel of several engines simultaneously (vessels, locomotives, group of gensets, boiling equipment).

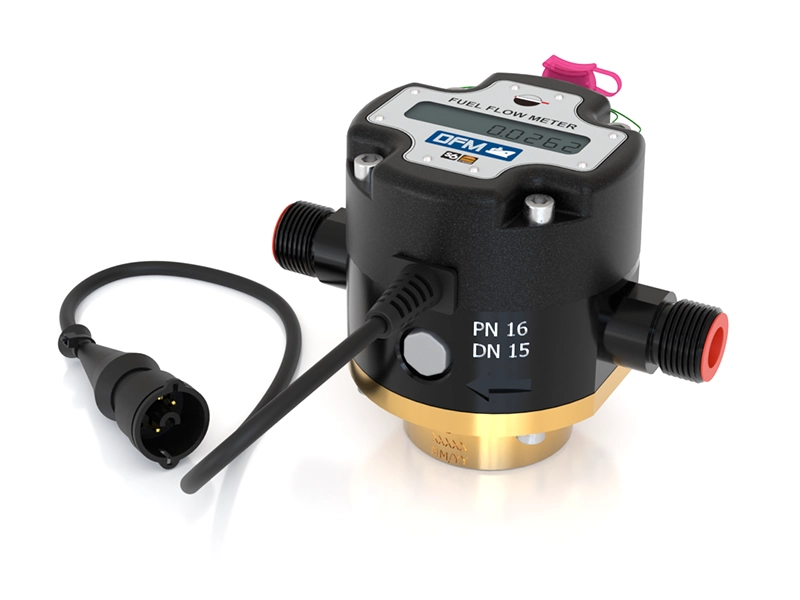

Materials

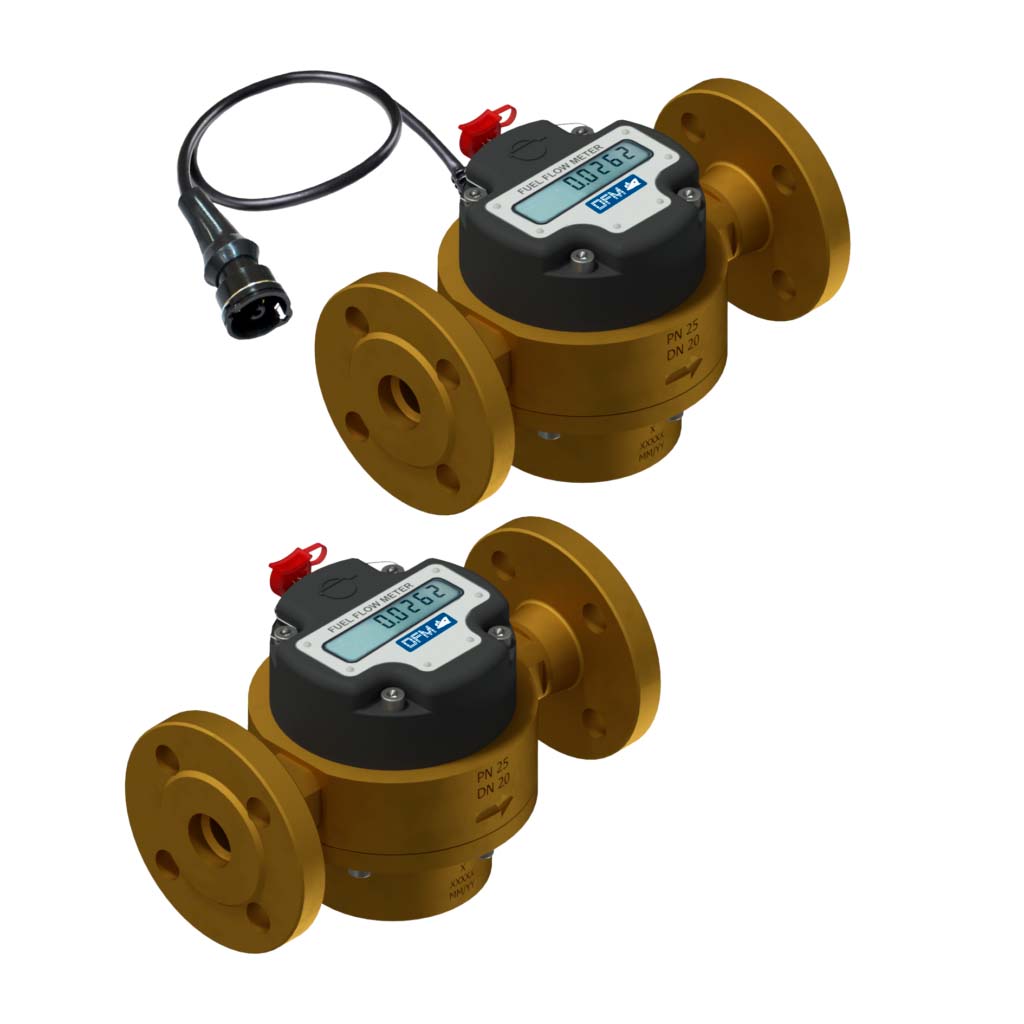

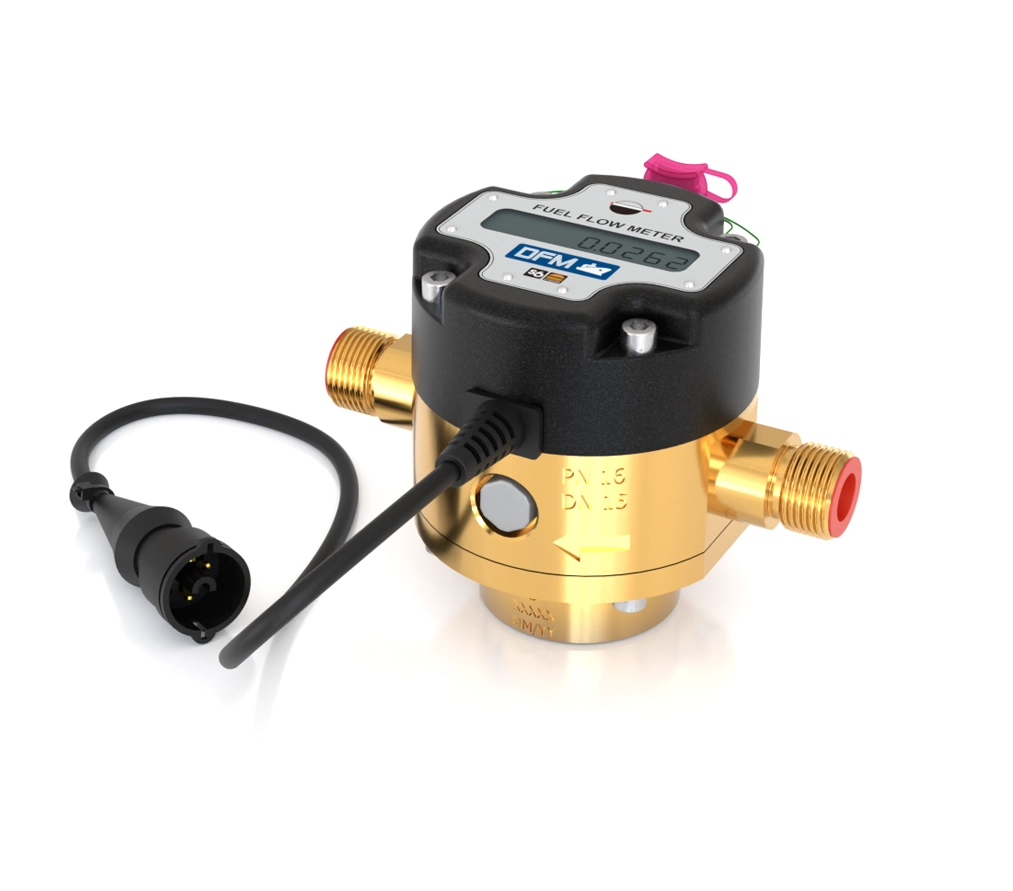

Measurement chamber of DFM Marine is made of corrosion-proof metal – brass. Body and thread/flange is made of either brass or duralumin.
What data you can get from flow meter DFM Marine
Each DFM Marine has a screen, that visualizes data on its measurements. Some models, apart from embedded electronic display also send data via its digital interface or pulse output to onboard telematics device or other data recording unit.
- Instant and average consumption
- Total fuel consumption
- Idling, Optimal and Overload time counters
- Reserved programmable counter
- Total working time
- Notifications on Interference and Tampering
- Ignition ON/OFF notifications
- High/low power supply warnings
Suits any vehicle with diesel engine
Main features
- Heavy-duty design - robust body made of zinc-aluminum alloy for long lifetime in harsh environment. * Body made of brass upon special order
- High accuracy - precise fuel consumption data, inaccuracy of 0.5% even at low fuel flow
- Digital screen - onboard indication of fuel consumption and engine operating time
- Various fluids types - consumption measuring of the diesel fuel, heating oil, engine oil other types of liquids with kinematic viscosity from 1.5 to 6mm²/sec
- Direct and back flow measurement - two intercommunicating flow meters are installed in fuel supply and return lines
Specifications and options
Technical specifications
| Maximum Pressure | |
|---|---|
| on flange connection | 25 atm |
| on thread connection | 16 atm |
| Fluid viscosity | 1,5 – 6,0 mm2/s (cSt) |
| Working temperature | – 40 to +85 °C |
| Measurement chamber material | brass |
| Body/connection materials | brass/duralumin |
| General inaccuracy rate | 0.5% |
| Inaccuracy rate for fuel flow below 50 L/h | not more than 1% |
Technical specifications
| Fuel Flow Ranges | |
|---|---|

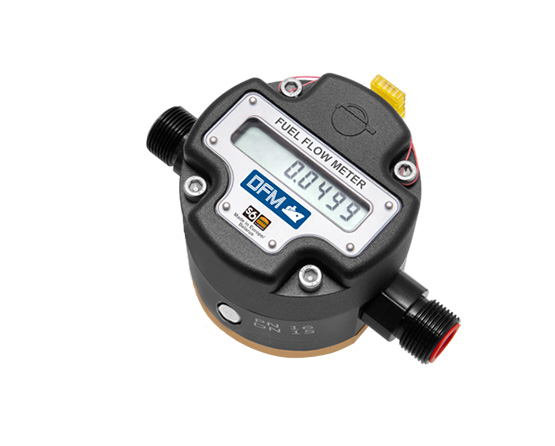

| DFM Marine 1000 | 20-1000 L/h |

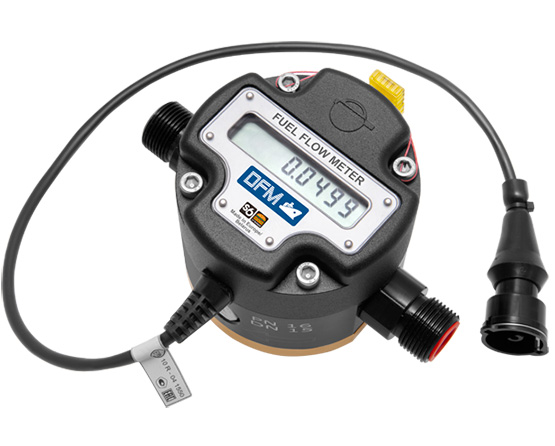

| DFM Marine 2000 | 40-2000 L/h |

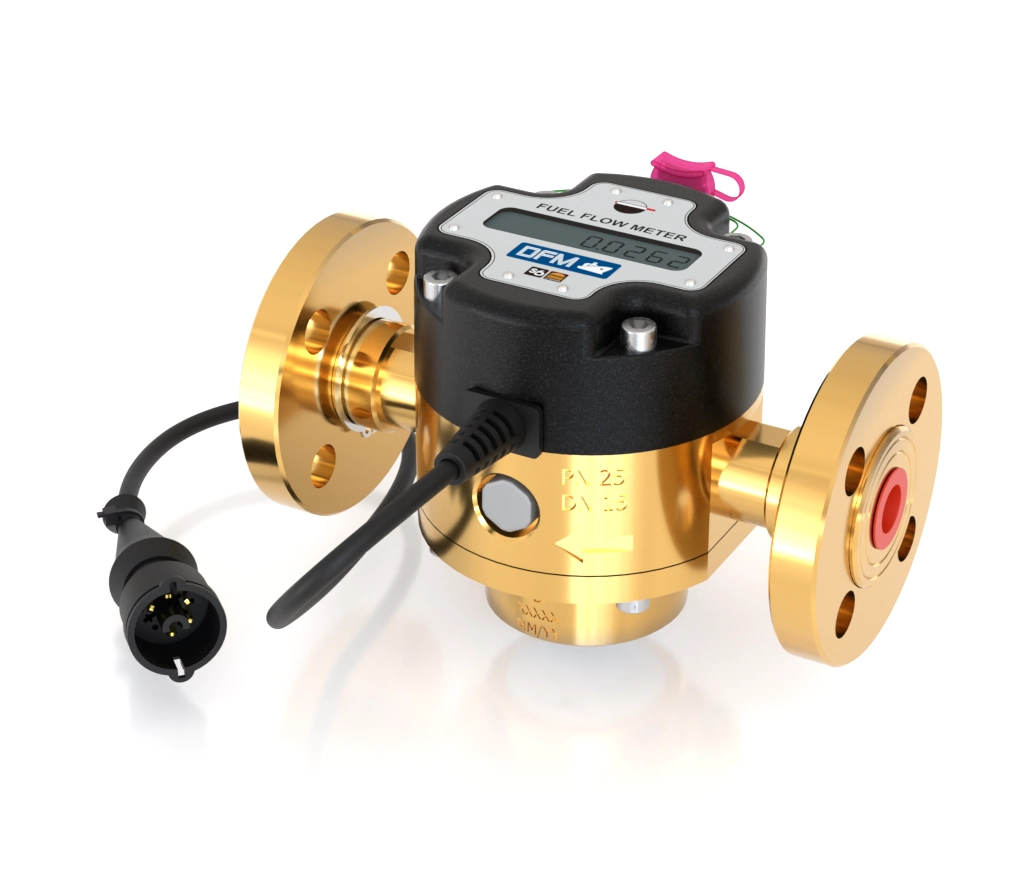

| DFM Marine 4000 | 80-4000 L/h |
Technical specifications

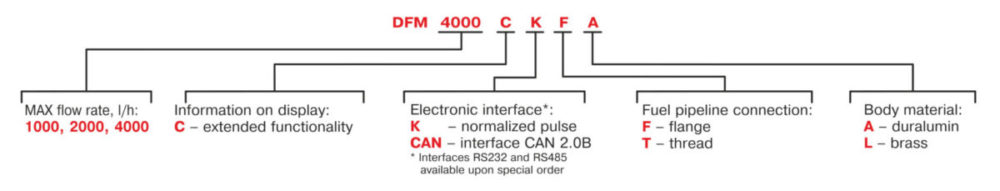

| OUTPUT TYPES | |
|---|---|
| DFM Marine C | 2display only (autonomous) |
| DFM Marine CK | pulse output |
| DFM Marine CCAN | CAN protocol/S6 |
| Upon request | RS232, DUT-E Com (LLS) RS485, Modbus |
